Club Car Precedent Won't Move? Tow/Run, Charger Interlock and Solenoid Tests

Quick answer: on an electric Club Car Precedent, start with the four things that lock the cart out without anything being broken: the Tow/Run switch under the seat must be on Run (then wait 10 seconds), the charger cord must be out, the pedal must be up when you turn the key, and the Forward/Reverse rocker must be fully in Forward or Reverse. If those are right, check that the pack reads at least 48V, then work along the power path with a meter: Tow/Run switch, 15-amp fuse, charger interlock, key switch and pedal switch, Forward/Reverse switch, then the solenoid. Every reading below comes from Club Car's own Precedent service manuals.

First: which Precedent electric system do you have?

Club Car's 2009–2011 Electric Precedent service manual covers two drive systems, IQ and Excel, and its 2016 manual covers Excel with the ERIC charging system. All three use a 48V pack, a shunt-wound motor, a Tow/Run switch and a speed controller with a 16-pin plug, so most of the tests are the same. What changes is how the charger lockout works and which handset reads the faults:

The pedal sensor changed too. Club Car says all electric Precedents were built with an MCOR in the Gen II pedal group from early 2010 model year, serial number PQ1009-082079, and that many 2009 cars were reworked from a throttle position sensor (TPS) to an MCOR. If yours still has a TPS, use the TPS section of your manual for the pedal tests. The serial number is on a bar-code decal below the passenger-side cup holder or above the accelerator or brake pedal; our serial number lookup explains how to read the year from it. If the cart has a lithium conversion or an aftermarket controller, the factory readings below only partly apply: start with those makers' manuals.

Six checks before you pick up a meter

1. Charger cord out. Club Car's owner's manual says the control circuit stays locked out the whole time the charger's DC plug is in the receptacle. Pull it all the way out.
2. Tow/Run on Run, then wait. The switch is under the seat behind the batteries. On Tow, Club Car says power to the vehicle electrical components is turned off and the cart will not operate. After switching to Run, wait 10 seconds before driving; after switching to Tow, wait 10 seconds before going back to Run. A cart that just had battery work is often still on Tow.
3. Key, direction, then pedal. High Pedal Detect stops the cart if the pedal is already down when you turn the key or change direction. Club Car's sequence is key switch first, Forward/Reverse second, pedal last. Release the pedal fully and press it again.
4. Rocker fully in Forward or Reverse. In the middle position the cart won't move even with the pedal down.
5. Reverse buzzer in every position? That's a specific clue. Club Car's 2016 manual says that if the controller sees Forward and Reverse inputs at the same time, the buzzer sounds in all positions and the cart won't drive either way. Common causes are corrosion or water inside the rocker switch, or a switch that has failed closed. Jump to the Forward/Reverse test below.
6. Pack voltage. Meter on DC volts from battery no. 1 positive to the last battery's negative (no. 4 on a four-battery pack, no. 6 on a six-battery pack). Club Car wants at least 48V with the batteries fully charged; if not, look for a loose connection or a battery installed backwards. A rested, fully charged flooded 48V pack reads about 50.9V on Trojan's open-circuit voltage chart.

Resting voltage can look fine on a pack that collapses under load. Club Car's discharge test says a good, fully charged pack holds 46–49V under load, 32–46V means discharged or failed batteries, and below about 32V the batteries are deeply discharged or dead. The CDT quick reference treats less than 34V under load as low battery voltage. Without a discharge tester, lift the rear wheels and measure each battery while a helper holds the pedal down in Forward; the one that sags well below the others is your problem. Keep them watered, too: see how to water golf cart batteries.

The diagnosis at a glance

1. If the cord is in, Tow/Run is on Tow or the pedal was down at key-on → fix it, wait 10 seconds, cycle the pedal.
2. If the pack is under 48V at rest or sags hard under load → charge it, then test each battery under load.
3. If you have an IQDM or CDT handset → read the fault history first; the fault usually names the circuit.
4. If there's no handset and no click → follow the power path: Tow/Run switch, 15 A fuse, pin 5, key and pedal switch (pin 6), Forward/Reverse (pins 8/16), solenoid coil.
5. If the solenoid clicks but the cart sits → solenoid contacts, motor voltage at A1/A2, then the motor.

If you have a handset: what the faults mean

Club Car recommends troubleshooting with its handset (IQDM on IQ and OBC-era Excel cars, CDT on ERIC cars) and checking the fault history before doing anything else. A few faults explain most "won't move" calls. These are Club Car's descriptions and fixes from the 2016 manual; the 2009–2011 manual's IQDM fault lists cover most of the same faults for IQ and Excel cars.

If the CDT won't talk to the controller at all, Club Car's list of causes is itself a good checklist: Tow/Run on Tow or a failed tow circuit, a loose or broken gray wire at pin 9, the 15-amp fuse, a failed charger interlock (no voltage on pin 5), a pack below 32V, a corroded handset port (plug straight into the controller instead), or the DC cord left plugged in for more than 10 minutes.

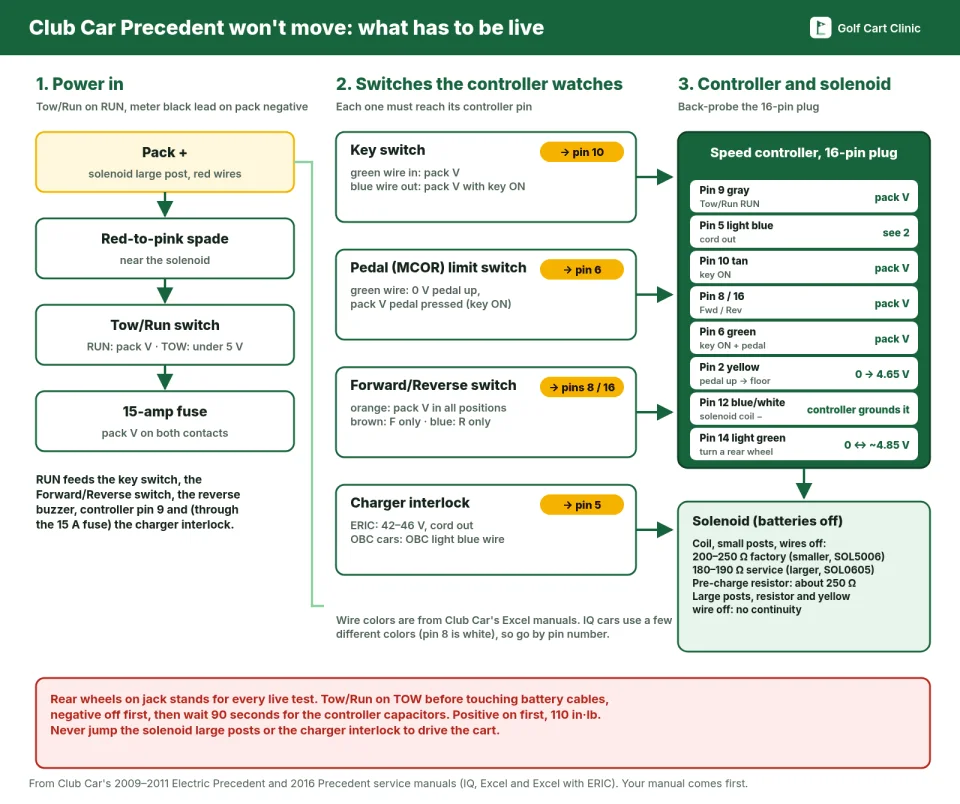

No handset: follow the power path

All voltage tests are done with the batteries connected, Tow/Run on Run and the meter's black lead on the last battery's negative post (or the controller's B- terminal), unless a step says otherwise. Club Car's 2016 manual describes the layout: the Tow/Run switch powers the key switch, controller, Forward/Reverse switch, 15-amp fuse and reverse buzzer, and the key switch powers the pedal (MCOR) switch circuit and the solenoid coil. The controller and solenoid are under the electronics module cover and the access panel in the rear body. Fix the first wrong reading before moving on.

1. Tow/Run switch

Key off for this test. Back-probe the switch without unplugging it. In Run, the pink wire coming in should show pack voltage, and the light green wire going out should too; below 5V on light green in Run means the switch has failed open. In Tow, light green should drop below 5V; if it stays at pack voltage, the switch has failed closed. No voltage on the pink wire at all? Club Car says to inspect the red-to-pink spade connection at the solenoid. On 2009–2011 cars the manual's version of this test reads the pink wire at the switch connector: 48–50V in Run, under about 5V in Tow, and if it's low in Run, check the pink 16-gauge wire back to the solenoid's large post.

2. The 15-amp fuse

With Tow/Run on Run, probe the two small metal contacts on top of the fuse without removing it. Both should show pack voltage. If the red-wire side is low, replace the fuse. If the pink-wire side is low, recheck the Tow/Run switch and the red-to-pink spade by the solenoid.

3. Charger interlock (pin 5)

This is the circuit that locks the cart out while charging, and it can fail with the cord out. How you test it depends on the system:

• Excel with ERIC: back-probe the light blue wire at pin 5 of the 16-pin plug, black lead on the controller's B- terminal. With the cord out it should read about 42–46V. If not, remove the 15-amp fuse and measure from pin 5 to the red-wire terminal in the fuse holder: about 10.0 kΩ. If the resistor is bad, Club Car says to replace it or the main harness. Then check continuity from pin 5 to the blue wire terminal in the charger receptacle (and the bullet connector between them). With a CDT, the CHARGER INHIBIT item should read OFF with the cord out and switch to ON a few seconds after you plug it in; if it reads ON and the cart still drives, the controller is at fault.
• IQ and Excel with OBC: the OBC drives pin 5. Club Car's pin 5 test (plug disconnected, probe pin 5 against B-) expects 0V with the charger plugged in and full pack voltage once it's unplugged. If pin 5 sits at zero with the cord out, the OBC may be asleep. Plug the charger's DC cord in: if the dash light comes on for 10 seconds, the OBC has powered up. Unplug and measure again. Club Car notes that pressing the accelerator should also wake the system. If the dash light doesn't come on, check for about 48V on the red 18-gauge wire at the OBC's six-pin connector; no voltage there points back to the Tow/Run switch, and voltage with good connections means the OBC's activation circuit has failed. Club Car also gives an OBC gray-wire check: about 48V from battery no. 1 positive to the gray wire at the OBC with the cord out (zero means replace the OBC), dropping to about 4V when you plug the cord in, before the charger relay clicks.

4. Key switch and pedal switch (pin 6)

Club Car says the quickest check is the end of this circuit: the green wire at pin 6 of the 16-pin plug. Rear wheels lifted, Forward/Reverse in Neutral. Key off and pedal up: 0V. Key on and pedal pressed: pack voltage. If that's right, the key switch, pedal switch and wiring are fine. If not:

• Key switch (behind the instrument panel; leave the wires on): green wire should have pack voltage with the key off, blue wire 0V. If blue shows voltage with the key off, the switch has failed closed. Key on, blue should show pack voltage; if not, the switch has failed open.
• MCOR limit switch (under the floormat and cover plate): at the MCOR's two-pin connector, key on, the blue wire should show pack voltage coming in. The green wire should read 0V with the pedal up and pack voltage with the pedal pressed. If green never switches, Club Car says replace the MCOR.

5. Forward/Reverse rocker switch (pins 8 and 16)

Pry the switch out of its housing with a small flat screwdriver and back-probe its three wires with Tow/Run on Run. The orange wire is the feed and should show pack voltage in all three positions; if it doesn't, check the 15-amp fuse, Tow/Run switch and the red-to-pink spade. The brown wire should show pack voltage in Forward only, and the blue wire in Reverse only. Voltage on brown or blue in Neutral means corrosion across the contacts or a switch failed closed; no voltage in the selected direction means a corroded contact or a switch failed open. Either way, replace the switch. When you refit it, Club Car says the three terminals face the front of the cart.

6. Solenoid coil, resistor and contacts

Disconnect the batteries (Tow first, negative first, 90 seconds), take off the electronics module cover and pull the two small wires off the solenoid. Club Car's 2009–2011 and 2016 manuals warn that two different solenoids are used, with different readings:

• Coil, across the small posts: 200–250 Ω for the smaller factory solenoid (label SOL5006), 180–190 Ω for the larger service replacement (label SOL0605). Out of range, replace it. The 2016 manual adds that a defective coil usually reads under 40 Ω.
• Pre-charge resistor: across the two large posts, about 250 Ω.
• Contacts, unpowered: take the 6-gauge yellow wire and the resistor off one large post (hold the lower nut with a second wrench). The large posts must show no continuity; if they do, the contacts are welded. Refit and tighten the nut to 77 in·lb (8.7 N·m).
• Contacts, powered: with the rear wheels lifted, meter on the large posts on ohms, Tow/Run to Run, key on, Forward, press the pedal. The wheel should turn and the reading should change. If it doesn't, Club Car says replace the solenoid.

For what that resistor does, and why some replacement solenoids come with a diode, see our solenoid diode and resistor guide.

7. The pedal signal (MCOR) and the 16-pin plug

If every switch passes and the solenoid still doesn't close, test the MCOR's three-pin connector, key off, Tow/Run on Run, rear wheels lifted. The purple/white wire reads about 48–50V measured from battery no. 1 positive. The white wire reads about 4.65V from pack negative. The yellow (signal) wire starts near zero with the pedal up (Club Car's 2009–2011 manual says about 0.32V) and should rise smoothly to about 4.65V with the pedal floored. If it doesn't rise, or it jumps around, or it changes when you wiggle the floored pedal side to side, replace the MCOR. A pedal that never quite reaches full signal is also why a Precedent can run but never hit top speed.

Club Car's 2016 table for the 16-pin plug lists these readings (pack voltage = "pack"). Some are taken with the plug connected and back-probed, others with it unplugged, as noted. Push loose terminals back into the housing and listen for the click when you reconnect it.

Wire colors are from Club Car's Excel manuals. IQ cars use a few different colors (the 2009–2011 manual shows pin 8 as white on IQ), so go by pin position.

Solenoid clicks, cart still won't move

A click only proves the coil moved. Our solenoid clicking guide has the on-cart voltage-drop test for the heavy contacts. On a Precedent, Club Car's next check is motor voltage: rear wheels lifted, meter red lead on A1 (green wire) and black on A2 (white wire), Forward, key on, press the pedal slowly. It should climb from about 5V when the pedal switch closes to about 48V at full pedal. A low speed setting reads lower; Club Car's example is about 30V on speed setting 1. No voltage at all: recheck the MCOR and the solenoid contacts.

Then the motor itself, batteries disconnected and wires off the terminals (use two wrenches so the posts don't turn). Club Car's tests: no continuity from A1, A2, F1 or F2 to the motor case, checked while slowly rolling the cart to turn the armature; continuity from A1 to A2 (if not, suspect brushes or the armature); continuity from F1 to F2 (if not, suspect the field coil or its terminals). The 2016 manual's motor specs list field coil resistance at 1.75 Ω at 75 °F. Touch your meter leads together first and subtract that reading, because values this small are easy to misread.

If the cart drives one way but not the other, Club Car points to the Forward/Reverse switch wiring, the motor wiring or a failed controller FET.

It moves, but crawls

• Speed sensor. With a speed sensor fault, Club Car says the controller limits the cart to about half its normal top speed. Quick test without tools on level ground: Tow/Run on Run, key off, Neutral, push the cart about 3 feet. The reverse buzzer should sound and motor braking should engage. If neither happens, Club Car says replace the motor speed sensor. With a meter, unplug its three-pin connector: the red wire should read about 15–16V and the light green about 4.60–4.90V from pack negative; reconnected, the signal toggles between 0 and about 4.85V four times per armature revolution.
• Welded solenoid. MAIN WELDED also slows the cart. If a new solenoid doesn't cure the half speed, Club Car says check the accessory wiring.
• Weak pack, dragging brakes, low tires, overload. Club Car lists all of them under "vehicle runs slowly," plus thermal cutback when the controller heatsink passes 185 °F.

If it stopped right after new batteries

• Connect everything with Tow/Run on Tow, positive first, then switch to Run and wait 10 seconds.
• Compare the cable layout with the battery diagram in your manual. One battery in backwards drops pack voltage, and it's one of the first things Club Car's pack test tells you to look for.
• Torque the terminals to 110 in·lb. A loose post reads fine at rest and falls apart under load.
• Switched from four 12V batteries to six 8V (or back)? The meter-probe points in Club Car's tests move to battery no. 4 or no. 6 negative; the readings stay the same.
• If the cart drives but the lights and horn died, that's the 12V accessory feed: see golf cart lights not working after new batteries. A steady spark on the last cable means something is drawing current or shorted: read golf cart sparks when connecting the battery.

When to call a technician

• Every input checks out and the controller still won't close the solenoid, or a fault returns after a reset.
• The tests point to the OBC on an IQ or OBC-era Excel cart. The OBC also runs charging, so it has to match the charger.
• Melted cables, a burnt 16-pin terminal or a hot, swollen battery.
• The motor turns with the pedal up, or the cart creeps in Neutral.
• You need to change speed settings or clear faults: that takes Club Car's handset.

For symptoms on any brand, start with our golf cart won't move guide. Have the older Club Car? See Club Car DS won't move. More guides are in the Club Car section.

Frequently asked questions

Why won't my Club Car Precedent move after charging?

The charger interlock locks the control circuit while the DC cord is plugged in, so first make sure it's all the way out. If it still won't go, test pin 5 of the controller plug: on an ERIC cart it should read about 42–46V with the cord out (check the 15-amp fuse and the 10 kΩ resistor if it doesn't); on an IQ or OBC-era Excel cart it should read full pack voltage once the onboard computer is awake.

Where is the Tow/Run switch on a Club Car Precedent?

Under the seat, behind the batteries. It must be on Run for the cart to drive. Club Car says to wait 10 seconds after moving it to Run before driving, and 10 seconds after Tow before going back to Run.

Why does my Precedent beep but not move?

If the reverse buzzer sounds in every rocker position, the controller is seeing Forward and Reverse at the same time, usually because of corrosion or water in the Forward/Reverse switch, and the cart won't drive either way. A buzzer while a parked cart rolls with nobody on the pedal is walk-away braking, which Club Car says sounds once it has been engaged for two seconds; that's normal. A buzzer in Reverse is normal too.

What should a Club Car Precedent solenoid read?

Across the small posts with the wires off: 200–250 Ω for the smaller factory solenoid (SOL5006) and 180–190 Ω for the larger service replacement (SOL0605). The pre-charge resistor across the large posts reads about 250 Ω, and with the resistor and yellow wire off, the large posts should show no continuity until the coil is powered.

How do I reset a Club Car Precedent controller?

Club Car's reset for logic faults is to disconnect the batteries (Tow/Run on Tow, negative first), wait for the capacitors to discharge (90 seconds), then reconnect with positive first. For a High Pedal Detect lockout, just release the pedal and press it again. Clearing the stored fault history takes an IQDM or CDT handset.

Why does my Precedent only go half speed?

Club Car says a speed sensor fault or a welded solenoid makes the controller run the cart slowly. Push-test the speed sensor (key off, Neutral, Tow/Run on Run: the buzzer should sound and motor braking should engage as it rolls), then check the pack under load, the MCOR signal at full pedal, the brakes and the tires.

Sources

• Club Car, 2009–2011 Electric Precedent maintenance and service manual (IQ and Excel systems, TPS to MCOR change at PQ1009-082079, OBC solenoid lockout test, pin 5 and pin 9 tests, OBC gray wire, Tow/Run test, MCOR voltages and resistance, two solenoid types and coil values, 77 in·lb large-post torque, IQ 16-pin colors): PDF hosted by GolfTechs
• Club Car, 2016 Precedent golf car maintenance and service manual (Excel with ERIC charging: controller 1515-5206 vs 1515-5201, 10 kΩ charger interlock, testing basics, troubleshooting guides, test procedures 1–18 including the 16-pin table, CDT fault descriptions and quick reference, battery disconnect/connect procedure, motor tests and field coil spec): PDF hosted by gfretwell.com
• Club Car, Precedent owner's manual, electric vehicle with ERIC charging (Tow/Run location and 10-second waits, charger interlock, charge indicator light): PDF hosted by CartPros
• Trojan Battery, open-circuit voltage chart: trojanbattery.com
• Your cart's own owner's and service manual. Where it differs from this guide, follow it.
